A common question we’ve heard from the eCash community is how to safely store your eCash on popular hardware wallets such as Ledger and Trezor. Whilst the team is currently engaging with the major manufacturers to natively support eCash, there are a few workarounds that will allow you to use these devices now. These instructions are also available as a video. You can also find a list of hardware wallets that natively support eCash here.

Regardless of what type of hardware wallet you use, there are a few initial steps that are common to all brands. Firstly you need to have installed the wallet itself. This includes making sure the firmware is updated and your PIN code is set up. Also, please take the time now to ensure that you’ve backed up your recovery seed phrase so you can recover your wallet at a later date. We cannot emphasize enough the importance of this step.

Once your hardware wallet has been set up, you’ll need to connect it to the Electrum ABC wallet.

Ledger Instructions

For Ledger users, you’ll first need to install the Bitcoin Cash application onto your Ledger device if you haven’t already. Follow these steps:

1. Open the Manager in Ledger Live
2. Connect and unlock your device
3. If asked, allow the Ledger Live manager on your device

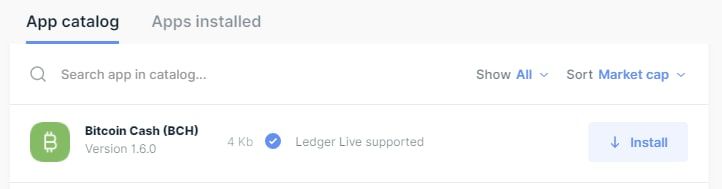

4. Find the Bitcoin Cash app from the catalog
5. Click the Install button of the app.

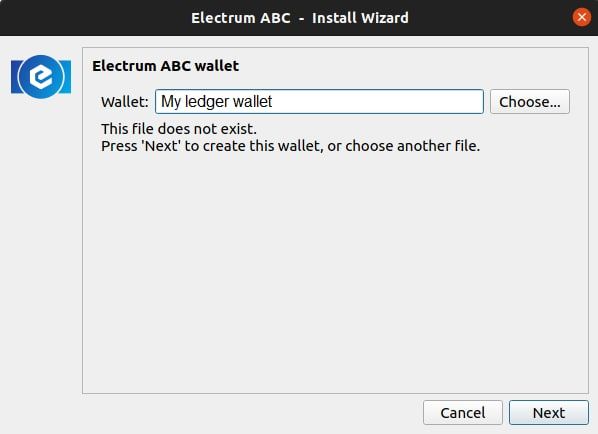

Next, open your Electrum ABC wallet. In your Electrum ABC wallet, click on File, New and Restore, and then type the wallet name and click Next.

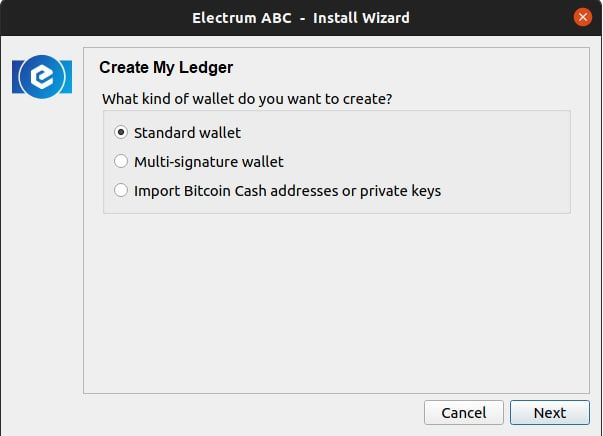

On the next screen, select ‘Standard Wallet’ for the wallet to be created and then click Next.

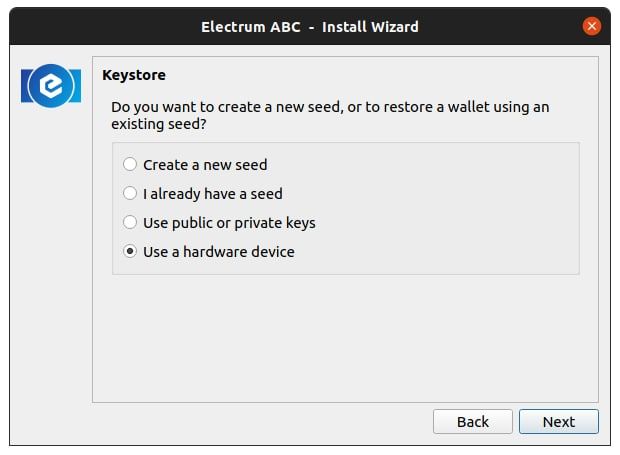

On the key store screen, select “Use a hardware device”, but don’t click Next just yet. Make sure your Ledger wallet is plugged into your computer if not already, and wait for a few seconds for your computer to recognize your device. Enter your PIN directly on the Ledger device and then open the Ledger’s Bitcoin Cash application. Once that’s done, go back to the Electrum ABC wallet and click “Next”.

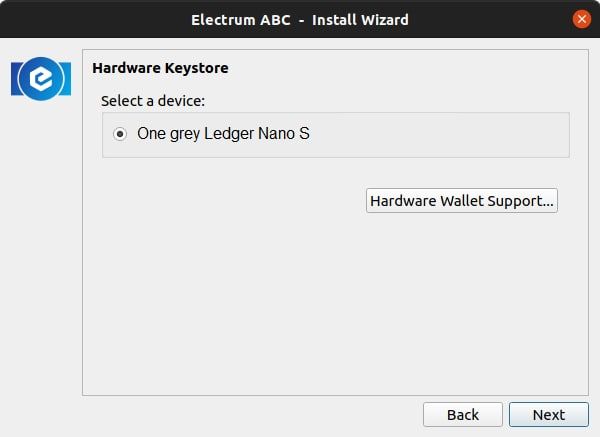

On the device screen, select the device that corresponds to your Ledger wallet then click Next.

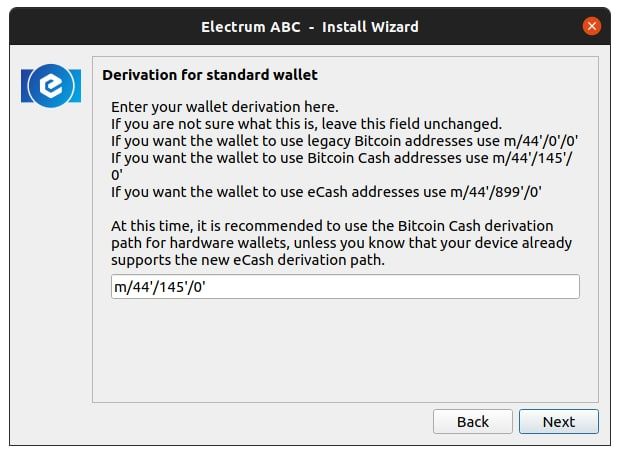

On the derivation path screen, ensure it is set to the BCH derivation path being m/44’/145’/0’. Then click Next.

You’re now all set up to use your Ledger device with the Electrum ABC wallet.

Trezor Instructions

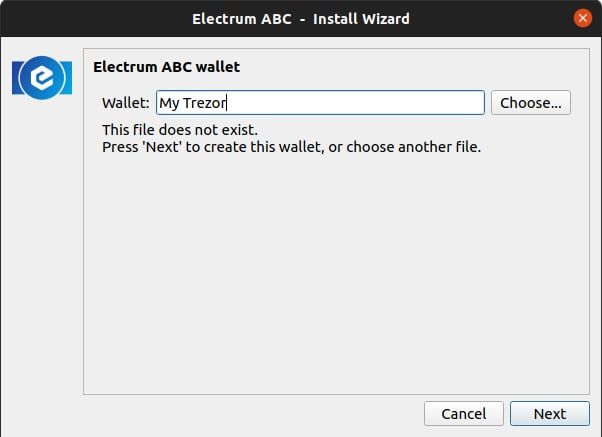

For both “Trezor One” and “Trezor Model T” users, firstly open up your Electrum ABC wallet, click on File, New and Restore, and then type the wallet name and click Next.

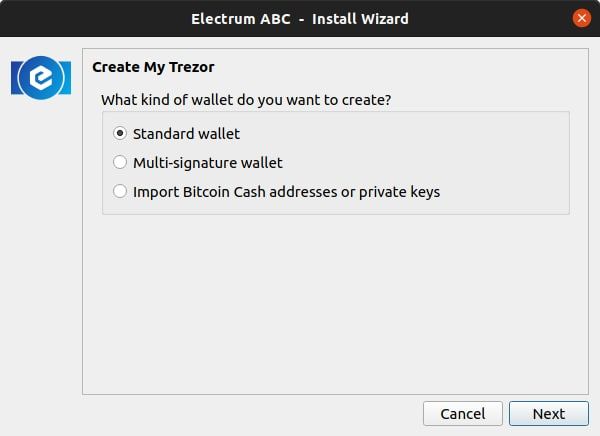

On the next screen, select ‘Standard Wallet’ for the wallet to be created and then click Next.

On the key store screen, select “Use a hardware device”, but don’t click Next just yet. Make sure your Trezor wallet is plugged into your computer if not already, and wait for a few seconds for your computer to recognize your device.

Trezor One

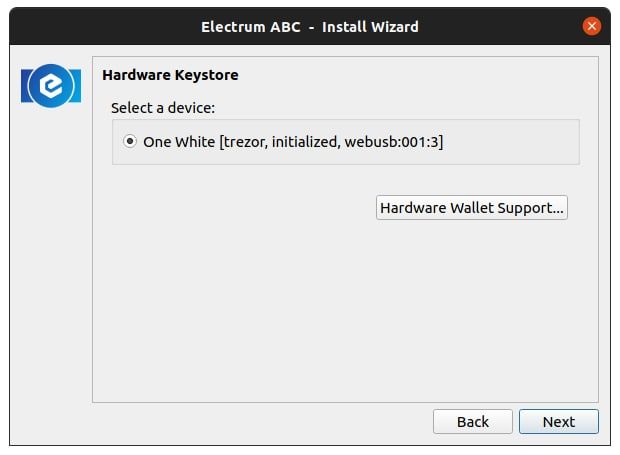

If you’re using a Trezor One wallet, go back into Electrum ABC and click Next. On the next screen select your Trezor One device, and click next.

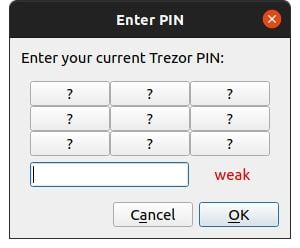

Then enter your pin in the dialog window opened by Electrum ABC and use your Trezor’s display to locate the digits.

Then finally on the derivation path screen, ensure it is set to the BCH derivation path being m/44’/145’/0’. Click next and your Trezor One is now set up.

Trezor Model T

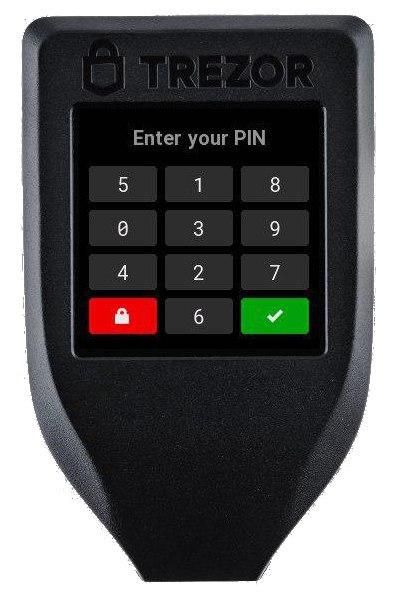

If you’re using a Trezor Model T wallet, back at the key store screen step, tap on your Trezor’s screen, and enter your pin directly on the Trezor Model T device. Then go back into the Electrum ABC wallet and click Next.

On the final derivation path screen, ensure it is set to the BCH derivation path, which is also m/44’/145’/0’. Then click Next and you’re now set up to use Trezor Model T devices as well.

Moving your eCash to the hardware wallet

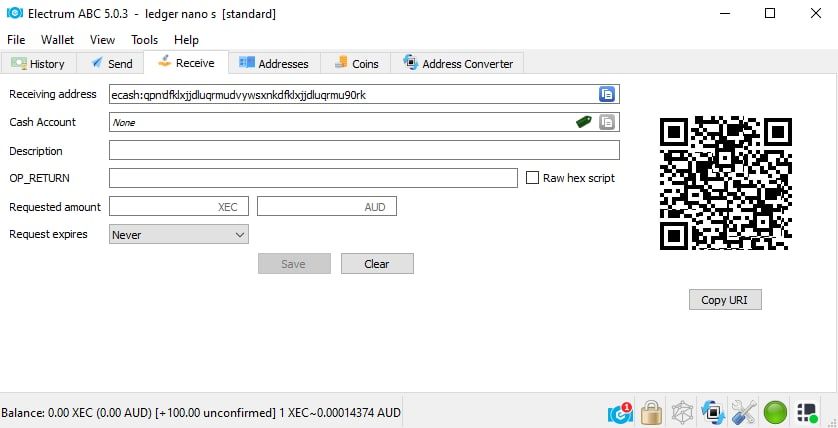

Now that you’ve set up your hardware wallet, getting the receiving address is as easy as clicking on the “Receive” tab of the Electrum ABC wallet. Sending XEC to this eCash address is essentially storing it in the hardware wallet you just set up.

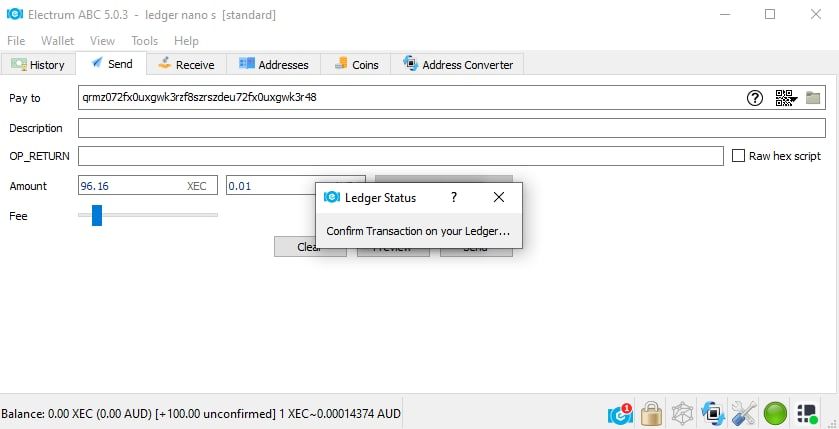

When Sending eCash from this hardware wallet, it’s the same as your usual Electrum ABC steps, but with the extra step where you’ll need to confirm the transaction on your hardware wallet.

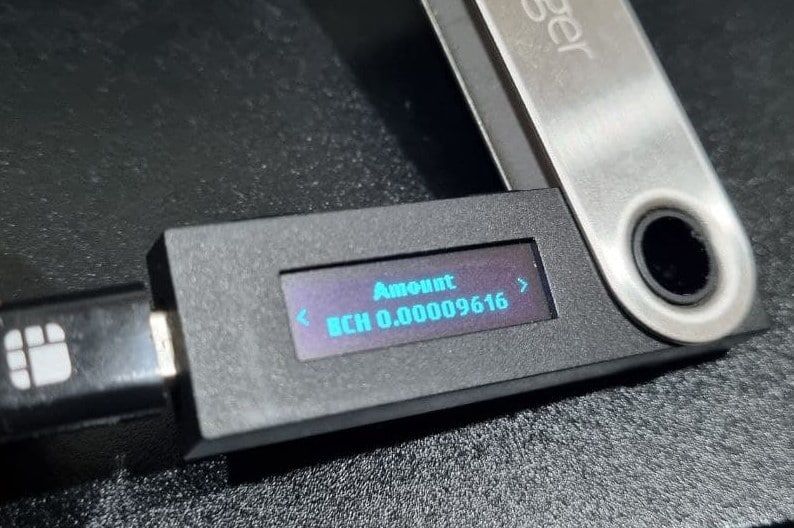

Because this is a workaround, the confirmation value will show up on your device in BCH denomination, but ultimately it’s the XEC that is being transferred.

As always, please test with a small amount first just in case.

If you have any technical inquiries regarding the Electrum ABC wallet or its current workarounds with Trezor and Ledger devices please feel free to hop on to the official Electrum ABC Telegram Group.
